When you need a system that…
Oxerra’s Granumat® automatic dosing systems are designed to meter and transport the Granufin™ range of pigments ready to dispense into a concrete mixer.
Due to simple gravity or low-profile fluidizing tubes, the granules require no further transport mechanism to flow into the metering chamber and pneumatic transport system. The free-flowing nature of Granufin allows for a compact dispensing system as well as installation far away from the concrete mixer.

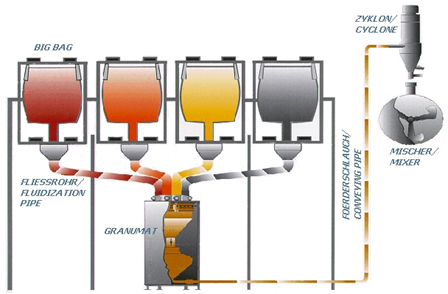

After weighing the individual colour components for each recipe in the balance unit, the full batch is then pneumatically conveyed into a cyclone with a dust extraction filter positioned above the concrete mixer.
Simple, clean, hands-free and efficient handling of oxides!
Contact us today to find out more about Granumat dosing systems.
SYSTEMS
GRANUMAT® Color Synthesizer at a Glance:
– Modular design for 2 up to 8 colours (standard)
– Dosing range 200kg - 20kg
– Conveying range 500g - 20kg
– Accuracy +/- 10g
– Coarse, fine and pulse dosing
– Feeds 1 - 4 mixers
– Expansion up to 3 production lines - 4 mixers each
– PLC or PC control - 1,000 recipes
GRANUMAT® Multi Color at a Glance:
– Modular design for 2 up to 8 colours (standard)
– Dosing range 500kg - 20kg
– Conveying range 500g - 20kg
– Accuracy +/- 25g
– Coarse, fine and pulse dosing
– Feeds 1 - 4 mixers
– Expansion up to 3 production lines - 4 mixers each
– PLC or PC control - 1,000 recipes
